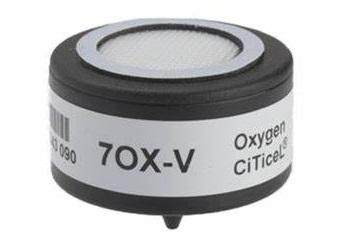

7OXV CiTiceL® Oxygen (O2 ) Gas Sensor
Part Number: AAV66-380
Buy 7OXV O2 Sensor NoW

Key Features and Benefits:

  • Robust, industry standard 7-Series packaging
  • Compact size

Download
7 Series 7OXV CiticeL Oxygen (O2) Gas Sensor Product Data Sheet

Honeywell 7 series | 7OXV Citicel O2 Gas Sensor | Gas Monitoring | Gas detecting | Buy Now | Order Online | Spantech products

Technical Specifications

Measurement

  • Technology : Electrochemical
  • Measurement Range : 0-25% vol. O2
  • Maximum Overload : 30% vol. O2
  • Output Signal* : 0.195 - 0.25 mA in Air
  • Response Time (T90)* : <15 Seconds
  • Offset (3 minutes N2)* : <0.5% vol. O2
  • Linearity : Can be considered linear in many cases. See Operating Principles  (OP-02) for further details.

Citicel 7OXV O2 oxygen Gas Sensor | Product Dimensions | Gas monitoring | Gas Detecting | Industry Sensor | Hospital Sensor | Replacement | Order Now | Spantech Products | Honeywell UK DIstributor

Electrical

  • Recommended Load Resistor : 100 Ω

Mechanical

  • Weight : <34 g
  • Casing Material : ABS

Environmental

  • Operating Temperature Range : -20°C to +50°C
  • Recommended Storage Temp : 0°C to 20°C
  • Temperature Coefficient : 0.2% signal / °C
  • Absolute Pressure Range : Atmospheric ± 10%
  • Differential Pressure Range : 40 mBar maximum
  • Pressure Coefficient : <0.02% signal / mBar
  • Relative Humidity Range
    Intermittent : 0 to 99%RH non-condensing
    Continuous : 15 to 99%RH non-condensing

Lifetime

  • Long Term Output Drift* : <5% signal / year
  • Expected Operating Life : 2 years in air
  • Storage Life : 6 months in original packaging

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

Order CiticeL 7OXV Sensor Now​​

Honeywell | 7 Series | 7OXV CiticeL | O2 Sensor | Gas Monitoring | Gas Detecting | Product Dimensions | ABS | Mesurement Range | 0-25% vol. O2 | Order Online | Buy Now | Spantech Products

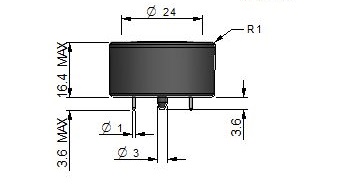

Product Dimensions

All dimensions in mm All tolerances ±0.15 mm unless otherwise stated

Honeywell | 7 Series | 7OXV CiticeL | O2 Sensor | Gas Monitoring | Gas Detecting | Temperature Behaviour | ABS | Mesurement Range | 0-25% vol. O2 | Order Online | Buy Now | Spantech Products

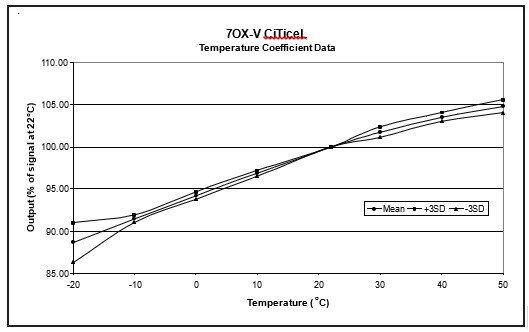

CiticeL 7OXV Gas Sensor Temperature Behaviour
Gradual changes and Sharp fluctuations


Honeywell | 7 Series | 7OXV CiticeL | O2 Sensor | Gas Monitoring | Gas Detecting | Output Signal Linearity | ABS | Mesurement Range | 0-25% vol. O2 | Order Online | Buy Now | Spantech Products

Linearity

The output signal of an Oxygen CiTiceL follows the relationship:

For most applications the deviation from a linear response will be insignificant, and no compensation needed. For example, the graph below shows the output of a sensor calibrated in air (20.9% O2). In this case the maximum error in the 0-25% range is »0.5% at around 10%O2 .
