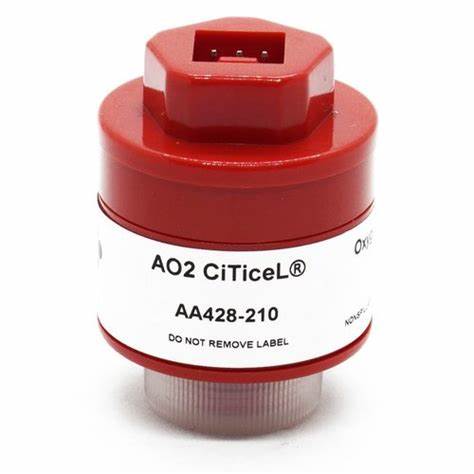

We are the Distributor of Honeywell | City Technology Oxygen (O2) Sensors

Key Features & Benefits

• Molex Connector
• Linear Output from 0-100% Oxygen

Technical Specifications

Measurement

• Operating Principle: Partial Pressure Electrochemical
• Measurement Range : 0-100% O2
• Output* : 9 - 13 mV in Air
• Response Time (T90)* : <5 s
• Response Time (T99.5) See Note 1* : <40 s Baseline  Offset*<20 µV

• Linearity Linear 0-100% O2

Electrical

• On Board Temperature : <2% O2 equivalent

• Compensation : Variation from 0°C to 40°C
• External  Load Resitor : 10 kΩ Minimum
• Connector : 3 Pin Molex header (MOLEX 22-29-2031)
• Recommended Mating Parts :
       Molex 3-Way Housing (MOLEX 22-01-2035)
       Molex Crimp Terminals (MOLEX 08-45-0110)

Mechanical

• Weight : 40 g (nominal)
• Housing Material : Red ABS
• Orientation : Any

Environmental

• Typical Application : Vehicle Exhaust Analysis
• Operating Temperature Range : -20°C  to +50°C
•  Operating Pressure Range : 0.5 - 2.0 Bar
• Differential Pressure Range : 0 to 500 mBar max
• Operating Humidity Range : 0 - 99% RH non-condensing

Lifetime

• Long Term Ouput Drift in 100% : O2<10% signal loss/year
• Expected Operating Life : 360,000% O2hours at 20°C 286,000% O2 hours at 40°C or 2 years in air at STP.
• Packaging : Sealed blister

Note 1: T99.5 Response is equivalent to a change in concentration fom 20.9% O2 to 0.1% O2

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

The AO2 has been tested with a number of gases which may be present in automotive exhaust to establish their level of cross interference.
